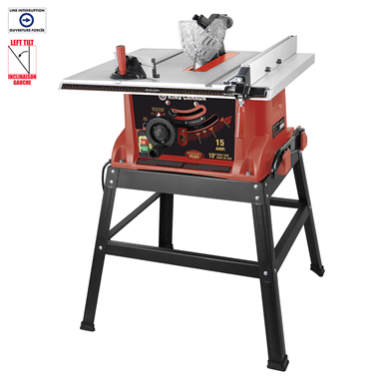

10" TABLE SAW

10" Table saw with riving knife

- Powerful 15 Amp., 4,800 RPM ball bearing motor
- Heavy-duty steel stand
- Blade tilts 00 to 450 for versatile angle cutting
- Electromechanical safety switch with line voltage interruption
- Single lever cam-locking handle on self-aligning rip fence
- Rip fence includes horizontal position aluminum guide to safely rip thin and narrow stock
- Side mounted miter gauge and rip fence storage
- 26 x 21-1/2 heavy-duty cast aluminum table allows up to 12 rip capacity to the right of the blade
- Miter gauge comes with adjustable aluminum facing for extra workpiece support
- See-through blade guard with riving knife
- Comes with 10 carbide tipped ripping blade, rip fence, aluminum guide, miter gauge,
push stick, blade wrenches and adjustment keys

Blade diameter = 10"
Depth of cut at 45° = 2-1/2"
Depth of cut at 90° = 3"
Table size = 26" x 21-1/2"
Dimeter of arbor = 5/8"
Arbor speed = 4,800 RPM
Motor = 15 Amp.
Voltage = 120V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 26" x 28-1/2" x 41-3/8" / 48 bs.
Package dimensions (LxWxH) = 28" x 24-5/8" x 14-3/16" / 52 lbs.
