DISC/BELT SANDER

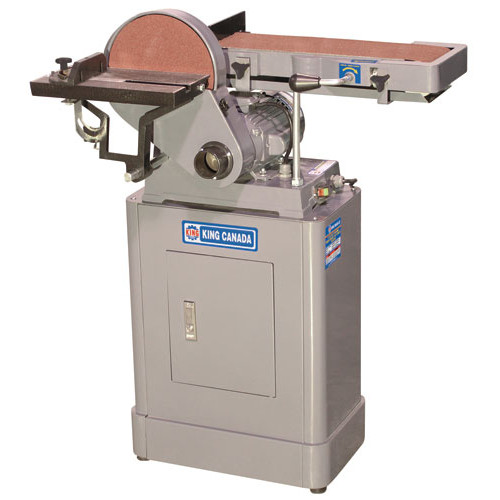

6" X 48" Belt & 9" Disc Sander

- Powerful 1 HP Motor
- Quick belt release lever for easy replacement
- Heavy-duty cast-iron construction
- Two 2-1/2" dust chutes with 2-1/2" to 4" adapter for dust collector hook-up
- Belt platen is covered by a graphite pad which reduces friction and increases belt life
- Easily removable safety guards protect user during belt sanding operations
- 2 positions belt and disc cast-aluminum table tilts from 0°-45°
- Adjustable belt unit operates vertically, horizontally or at any angle in between
- Comes complete with miter gauge, 2-1/2" to 4" dust chute adapter and sturdy enclosed cabinet stand

Belt = 6" x 48"
Belt Lift = 0° - 90°
Belt Speed = 1,250 SFPM
Disc = 9"
Disc Speed = 1,740 RPM
Motor = 10 Amp.@110V/5 Amp.@ 220V
Voltage = 110V/220V, 1 phase, 60 Hz
Pre-Wired = 110V
Assembled dimensions (LxWxH) = 30" x 19" x 56" / 135 lbs
Package dimensions (LxWxH) = 27-1/2" x 22-1/2" x 18" / 138 lbs
