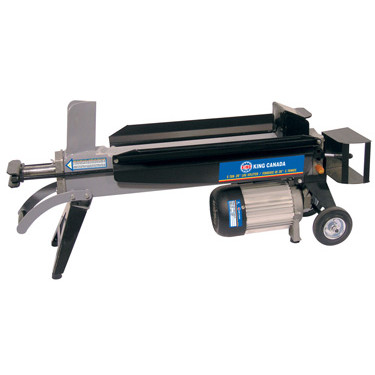

20"LOG SPLITTER

5 TON LOG SPLITTER

- Powerful 120V 1-3/4 HP induction motor with a splitting force of 5 tons
- Splits 20-1/2" x 12" logs, up to 100 logs per hour
- Solid steel construction for strength and rigidity
- Uses standard hydraulic oil
- Two handed safe splitting operation and hands free auto return
- Portable design features rear wheels and front leg
- Easily fits in trunk of car
- Can be used on floor or bench for maximum versatility

Log capacity = 20-1/2" x 12"
Splitting force = 5 Tons
Hydraulic oil capacity = 3.2L
Hydraulic pressure = 20 Mpa
Cycle time (fwd/back in seconds) = 45571
Motor = 15 Amp.
Voltage = 120V, 1 phase, 60 Hz
Assembled dimensions (LxWxH)/weight = 36" x 10-1/4" x 17" / 100 lb
Package dimensions (LxWxH)/weight = 37" x 10-5/8" x 19-7/8" / 108 lb
