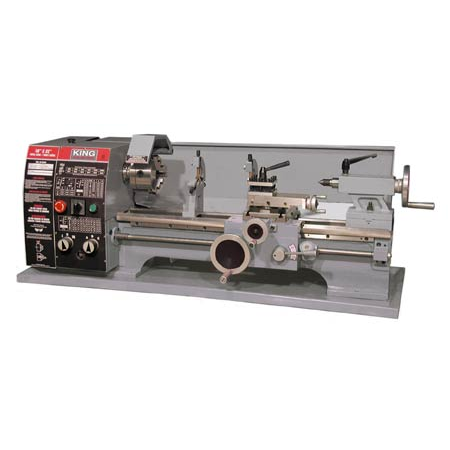

10'X22"METAL LATHE

10" X 22" Metal Lathe

- Powerful 1 HP Motor
- Safety guard with limit switch protection
- Line interruption switch system needs a restart after a power failure
- Guideway and gears in headstock are all hardened and precision ground
- Comes complete with 5"-3 jaw chuck, 6-1/2"-4 jaw chuck, imperial and metric gears, 4 ways tool post, steady rest, follow rest, 8" face plate, thread chasing dial indicator, MT#3 dead center, full length splash guard, tool box, chuck key and hex.l keys

Distance Between Centers = 22"
Swing Over Bed = 10"
Spindle Bore = 1"
Swing Over Cross Slide = 6"
Taper in headstock = MT #4
Taper in tailstock = MT #3
Width Of Bedways = 6"
Total Travel Of Cross Slide = 6-3/8"
Total Travel Of Top Slide = 4-1/4"
Spindle Speeds = 6 (150-2,400) RPM
Thread Cutting = 24 (8-72 TPI) 18 (.25-3mm)
Motor = 12 Amp.
Voltage = 110V, 1 phase, 60 Hz
Assembled dimensions (LxWxH) = 50" x 23" x 19" / 360 lbs
Package Dimensions (LxWxH) = 49" x 26-3/8" x 21-3/8" / 440 lbs
