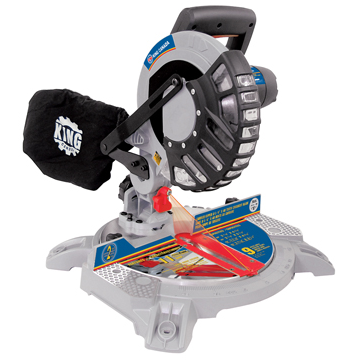

8-1/4 COMPOUND MITRE SAW

8-1/4" Compound Miter Saw With Laser

- Powerful 11 Amp., 5,500 RPM Motor
- Laser guide system indicates the cut line for reliable cuts every time
- 2-1/8" x 4-3/4" straight cut capacity at 90°
- Sturdy aluminum die-cast construction
- Rotating table has 9 positive stops at 0°, 15°, 22.5°, 30° and 45° right and left
- Bevel positive stops at 90° and 45° left
- Comes complete with dust bag and blade adjustment hex. key

Motor = 11 Amp.
Voltage = 110V, 1 phase, 60 Hz
Diameter of arbor = 5/8"
Blade Speed = 5,500 RPM
Maximum Cutting Height = 2-1/2"
Crosscut = 2-1/8" x 4-3/4"
Miter 45° Right Or Left = 2-1/8" x 3-1/4"
Bevel 45° Left = 1-3/16" x 4-3/4"
Compound 45° = 1-3/16" x 3-1/4"
Assembled dimensions (LxWxH) = 14-7/8" x 23" x 16" / 15 lbs
Package dimensions (LxWxH) = 18-1/2" x 14" x 12-3/4" / 18 lbs
