18" NOVA DRILL PRESS

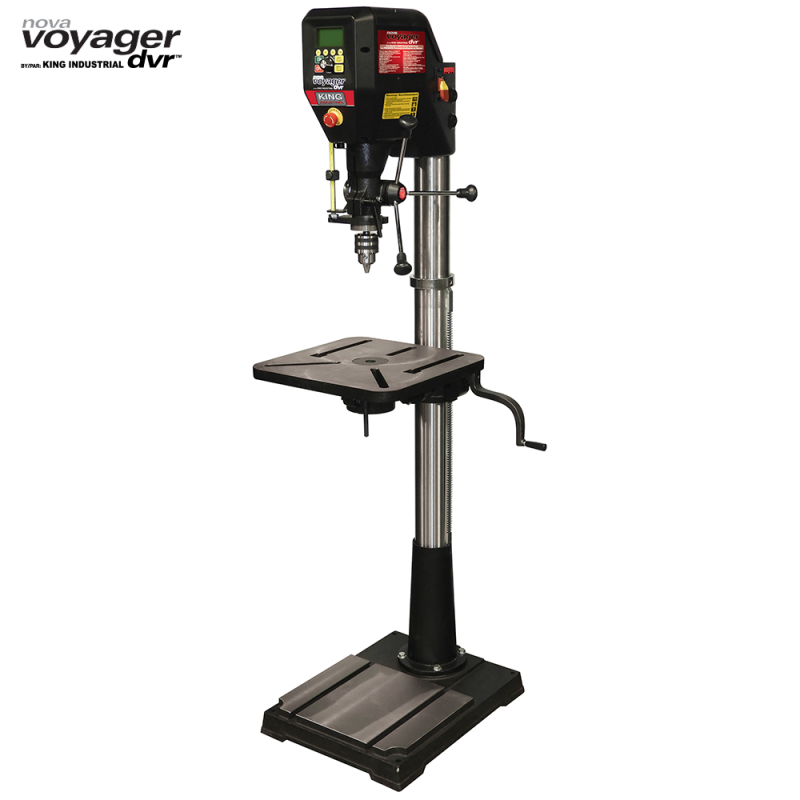

18" Nova Voyager Dvr Drill Press

- The worlds first smart drill press combines common drill press features with state of the art technology
- Powerful direct drive 1.75 HP high torque Motor with no pulleys or belts to cause vibration
- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
- Constant torque under load, depth and vibration sensors and emergency stop
- Slow start pilot hole, tapping assist with chip breaking cycle and self start functions
- Intelligent Speed selection and dial knob for precise Speed adjustments
- Electronic braking and forward/reverse
- Comes with 5/8" drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys

Capacity = 5/8"
Chuck Size = 5/8"
Swing = 18"
Max. Distance Chuck To Table = 23-1/8"
Max. Distance Chuck To Base = 40-7/8"
Stroke = 6"
Table size = 16-1/2" x 16-1/2"
Spindle Taper = MT #2
Quill Diameter = 75 mm
Variable Speed Range (Optional Setting) = 50 - 3,000 RPM (3,000 - 5,500)
Motor = 1.75 HP, 15 Amp.
Voltage = 120V, 60 Hz, 1 phase
Assembled dimensions (LxWxH) = 17-5/8" x 22-3/4" x 70-5/8" / 284 lbs
Package dimensions (LxWxH) = 62-3/4" x 27" x 17" / 325 lbs
